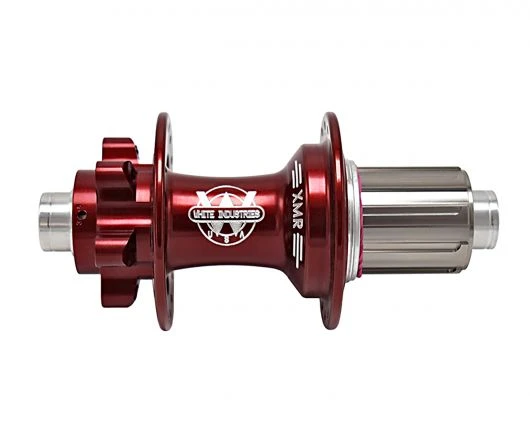

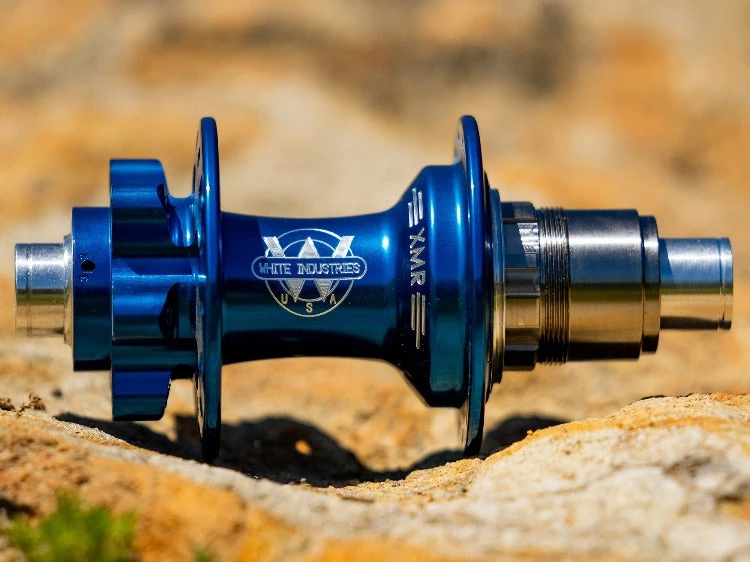

White Industries XMR Hub – Rear

THE XMR

The XMR has been our work horse hubset the last few years taking beatings in everything from the Enduro World Series to every day riding. Despite what we put the XMR through it has been a solid point in our line of hubs giving you strong stiff wheels while still being adaptable to different bikes and drivetrains.

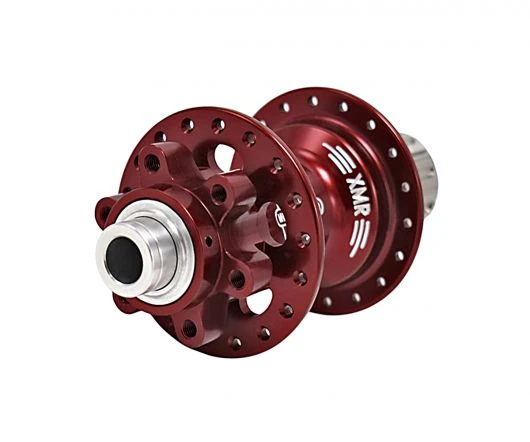

The six bolt disc is a tried and true braking system, but in no way means this hub is living in the past. The XMR is adaptable to Shimano Hyper Glide, Shimano Micro Spline, SRAM XD/XDR, or even Campy. This has resulted in a hub with the ability to work with any almost road, gravel or mountain bike.

Made in the USA

SHELL MATERIAL:

• 6061 aluminum

AXLE: 15MM STEEL

• 10x135mm QR

• 12X142mm Thru

FREEHUB BODY MATERIAL:

• 6al4v Titanium

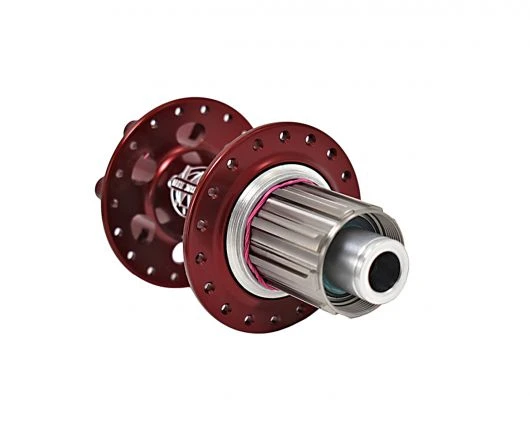

FREEHUB BODY OPTIONS:

• Shimano 11 speed

• Shimano Micro Spline

•  Campy

• SRAM XD/ SRAM XDR*

 *9/10/11 speed compatible when used with included spacer

BEARINGS:

• Shimano: three: 6902-2rs, one: 3802-W/or two 6802

• Micro Spline compatible: two: 6902-2rs, two: 3802W  (or four 6802)

• Campy:  two: 6902-2rs, two: 3802-W (or four 6802)

• XD/XDR: two: 6902-2rs, two: 3802W  (or four 6802)

WEIGHT:

• 298 grams

FINISH:

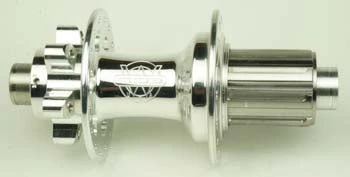

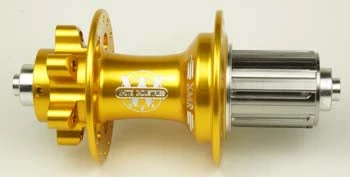

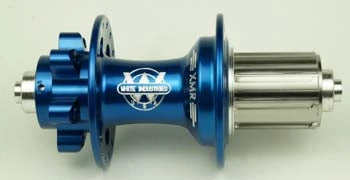

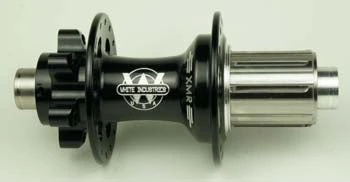

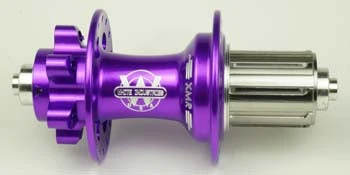

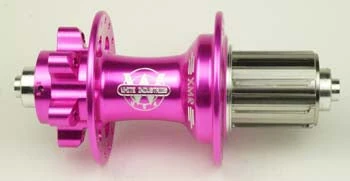

• polished silver, black, red, blue, gold, pink, or purple anodized

SPOKE HOLE DRILLING:

• 24h, 28h, 32h, 36h, 40h
