White Industries M30 / G30 Crankset (Mountain / Gravel)

One of our top selling products the White Industries M30 / G30 is a top quality made-in-USA crankset that is super versatile and can be used in a wide range of applications including single & double chainring for MTB, road and gravel bikes.

For a long time square taper was king, but in recent years the development of new axle standards have redefined crank and drive train standards. White Industries, answer this change by offering the MR30 cranksets.

One of the most versatile cranksets on the market featuring a HUGE range of different crank lengths and chainring options.

Please Note: This product is for the M or G crankset only. The R30 crankset can be found here. If you require a chainring(s) you will need to add either the

VBC Double chainring

, or

TSR Single chainring.

M30
The M30 is White Industries’ mountain crank built around a 73/92mm bb shell with configurations compatible with 1x, 1x Boost, or 2x chain rings. Both the TSR 1x standard and boost rings are designed with narrow / wide tooth configurations, while the 2x utilizes our VBC, variable bolt circle, system. You are able to configure and choose your inner and outer ring to create the ideal gearing ratio for the type of riding you do. Using a 30mm aluminum spindle, allows this crank set to be light yet durable. Compatible with BSA, T47, and Press Fit 30 systems, this new design brings a classic look to these modern cranks. Available in black anodized or silver polished with options of spicing up a set with colored extractor bolts.

G30
The G30 is White Industries’ adventure gravel crank set. The crank arms are designed to give you the spacing for wider tires while the narrow aluminum 30mm spindle allows you to keep a tight streamlined chain line. This crank is built around a 68/86mm bottom bracket and available in both the TSR 1x narrow wide and VBC 2X drive train configurations. BSA, T47, or Press Fit 30 compatible, available in either black anodized or silver polished with the option of colored extractor bolts.

Specifications:

• Material: 2024 aluminum
• Weight: 570g (175 crank arms and spindle)
• Chain line:  1x: 46.5mm  2x: 45mm Q factor: 171mm

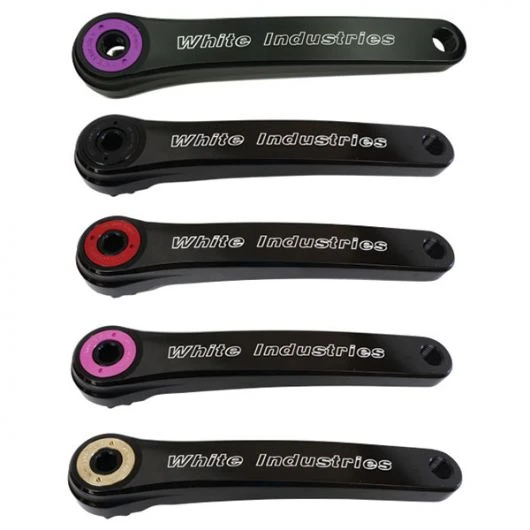

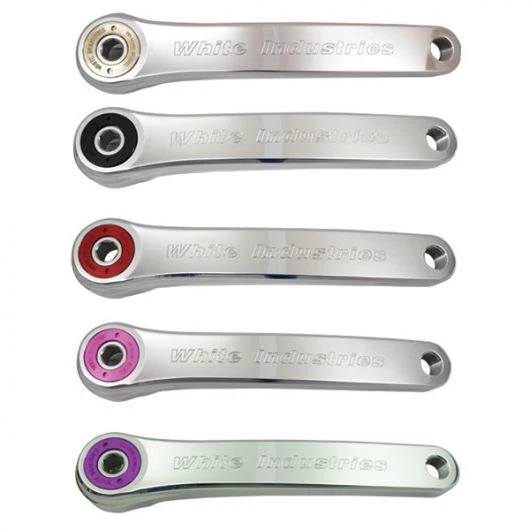

• Crank colors: black anodized or silver polish

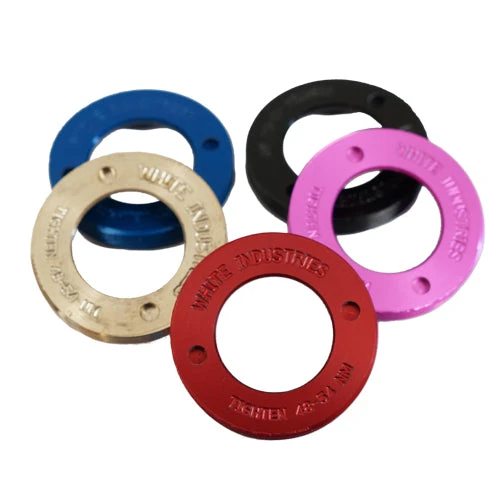

• Extractor colors: red, blue, pink, purple, black, gold

• Technical Drawing / Dimensions

• Bottom Bracket Compatibility

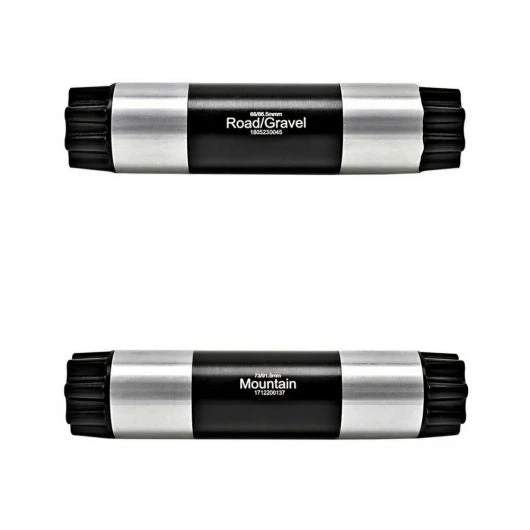

Please note that when you order a G30 crank, it shares a crank arm with the M30 and is labelled “M30” and not “G30”. The M30 uses a mountain spindle whereas the G30 uses a road spindle.

Fitting these yourself? Check out the tools you need to do it right!

Bondhus Hex Key Set (includes 1.5mm and 10mm needed for this job)

PARK TOOL BBT22 (used to attach chainring to crankset.

PARL TOOK BBT 79 (used to fit White Industries Bottom Bracket).

PARK TOOL SPA 2 (used to fit / remove crank extractors).
