Wheels Manufacturing Wheels Mfg Black - BSA 30 W/ Ceramic Bearings Bottom Bracket

Wheels Manufacturing Wheels Mfg Black - BSA 30 W/ Ceramic Bearings Bottom Bracket - Image 2

Wheels Manufacturing Wheels Mfg Black - BSA 30 W/ Ceramic Bearings Bottom Bracket - Image 3

Wheels Manufacturing Wheels Mfg Black – BSA 30 W/ Ceramic Bearings Bottom Bracket

Original price was: $150.00.Current price is: $96.99.

SKU: YXZ0L 4170626302018 Categories: Bottom Brackets, Bottom Brackets, Components Tags: 30mm, BB, BSA, Type_bottom_brackets

Quality products, fair prices.
Green products, guaranteed.
Safe and Secure Shopping
Buy quality, buy with us.

Description
Reviews (0)

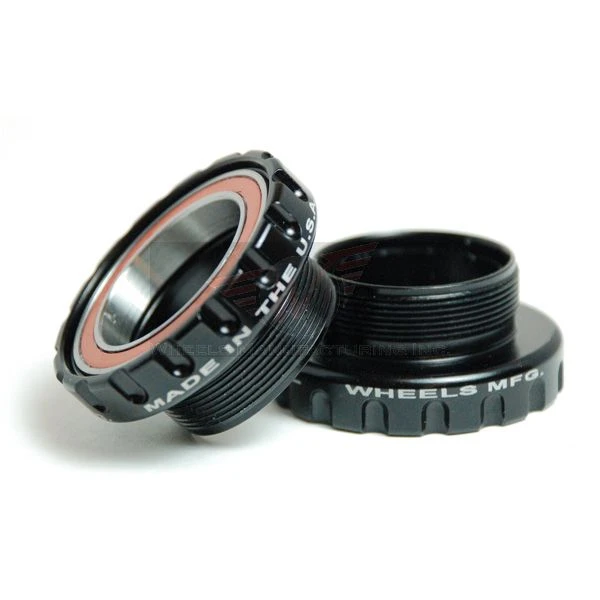

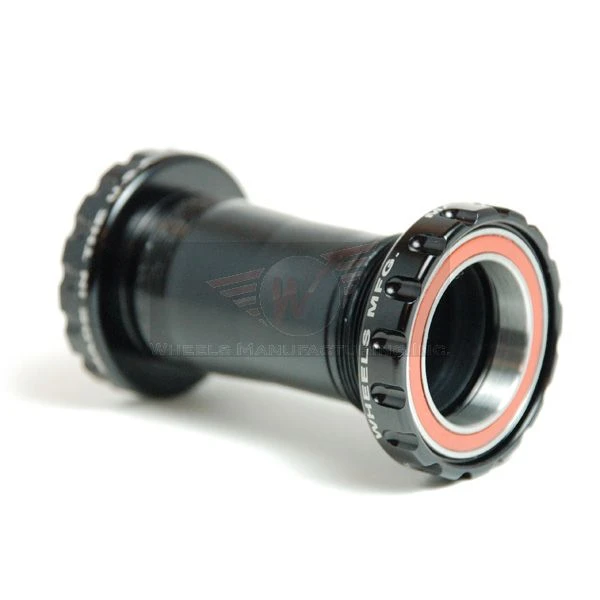

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Ceramic Hybrid sealed bearings outboard of the BB shell. Fully serviceable.

Notes:

For use with 30mm diameter cranks with a spindle length of at least 104mm when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!

Specifications

Bearings

Enduro Ceramic Hybrid

Color

Black

Bottom Bracket/Frame Interface

ISO/English or BSA Threaded (1.37 in x 24 TPI)

Bottom Bracket Shell Width (mm)

68mm – 73mm

Bottom Bracket Shell I.D.

33.6-33.9 mm

Crank Spindle Diameter

Crank Spindle Length

At least 104mm*

Over Bearing Width

91.5mm in a 68mm wide shell*

Weight

Quantity

1 SET/ BOX

– Packaged for retail display

*Over Bearing Width Dimensions include supplied silicone dust shields.
*Important: Will not work with crank spindles less than 104mm. PLEASE MEASURE YOUR CRANK SPINDLE LENGTH! This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.

Compatibility

Compatible with the following Bottom Bracket Standards:

ISO/English or BSA Threaded (1.37 in x 24 TPI)
68mm – 73mm BB Shell Width

Notes:

Compatible with 30mm diameter spindle cranksets with at least 104mm spindle length when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
If used with FSA BB386 cranks, please see our Compatibility Issues page for known issues.

Instructions

Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

Download:

Threaded to 30mm Ceramic Hybrid BB Installation / Warranty Download PDF File
