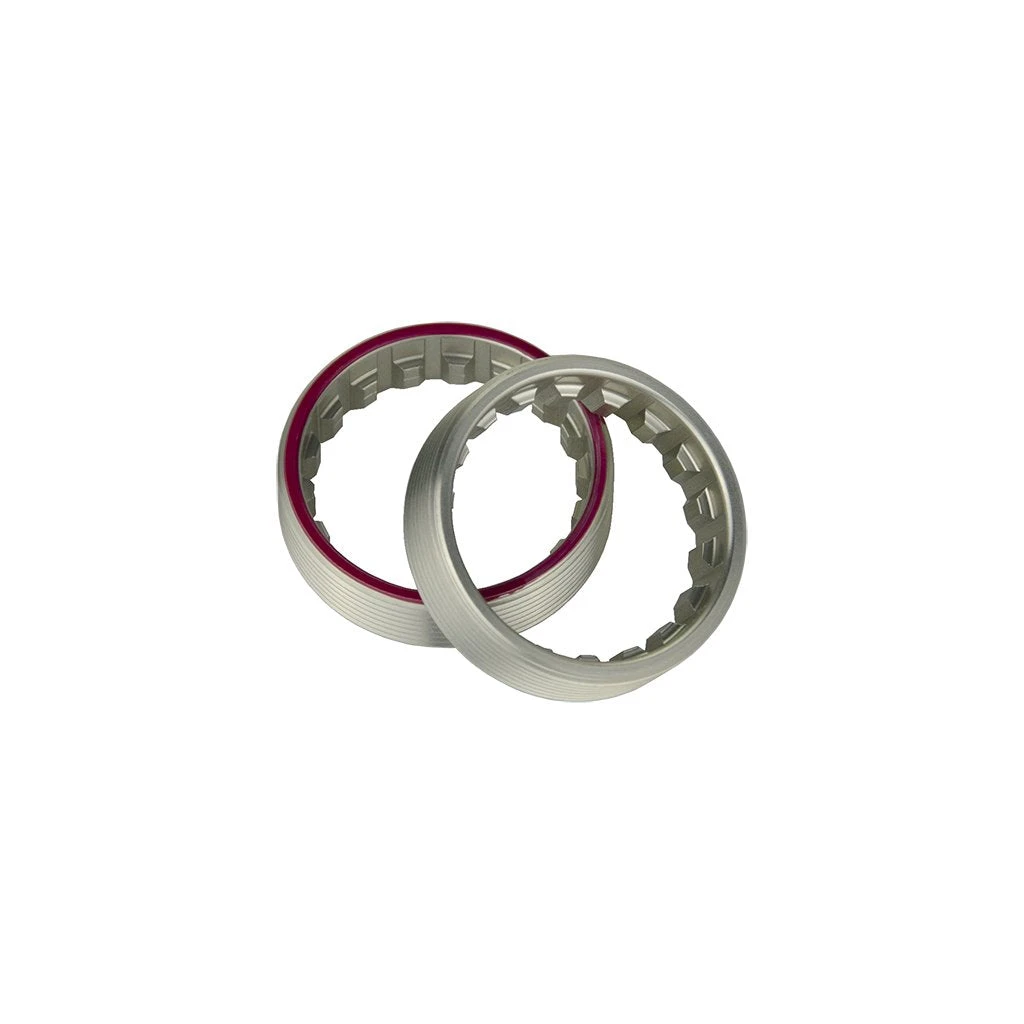

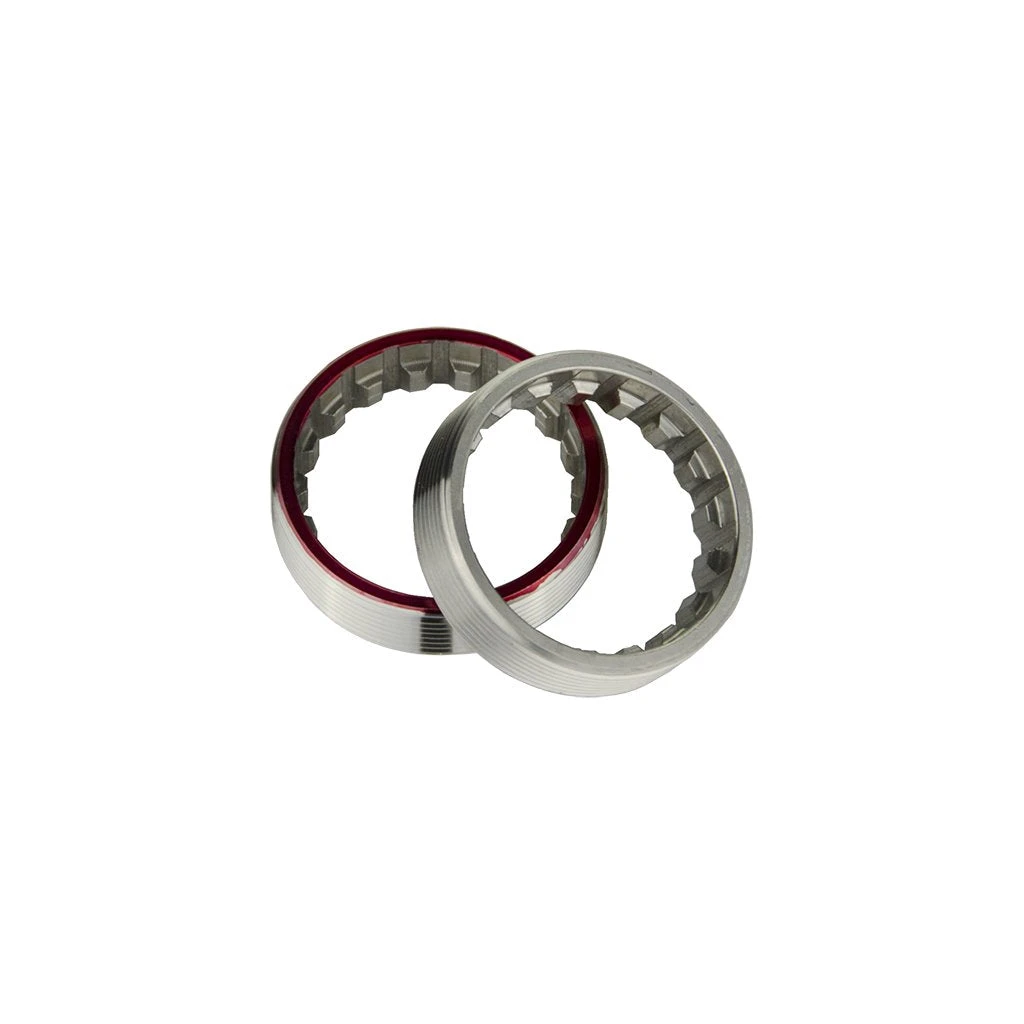

These Phil Wood cartridge cups are needed to complete the Phil Wood Square Taper ISO / JIS bottom bracket assembly.
Cups are sold in sets of 2, so only one set is needed for each bottom bracket.

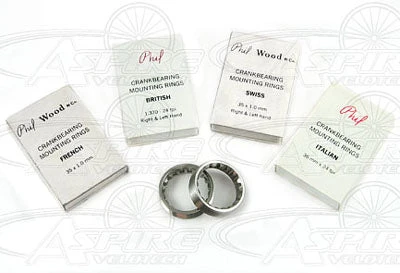

Available in the following options:
- British (1.370 x 24 tpi – RH & LH Thread) Stainless Steel or Alloy.
- British Extended Cup (1.370 x 24 tpi – RH & LH Thread)
- Italian (36 x 24 tpi) Stainless Steel
- French (35 x 1 tpi) Stainless Steel
- Swiss (35 x 1 tpi – RH & LH Thread) Stainless Steel
- Raleigh Super Corsa (1.370 x 26 tpi – RH & LH Thread) Stainless Steel
- Chater Lea (1.450 x 26 tpi – RH & LH Thread) Stainless Steel
You’ll need a Phil Wood installation tool to install these cups, and there are 2 available…
Phil Wood Portable Cartridge Cup Installation Tool
Phil Wood Pro Shop Bottom Bracket Cup Installation Wrench Tool
Phil Wood Bottom Bracket Cup Mud Guards
are designed to protect your Phil Wood bottom bracket cups from dust, dirt and mud that can accumulate in and around the bottom bracket cup splines.
American made in USA (U.S.A.)
