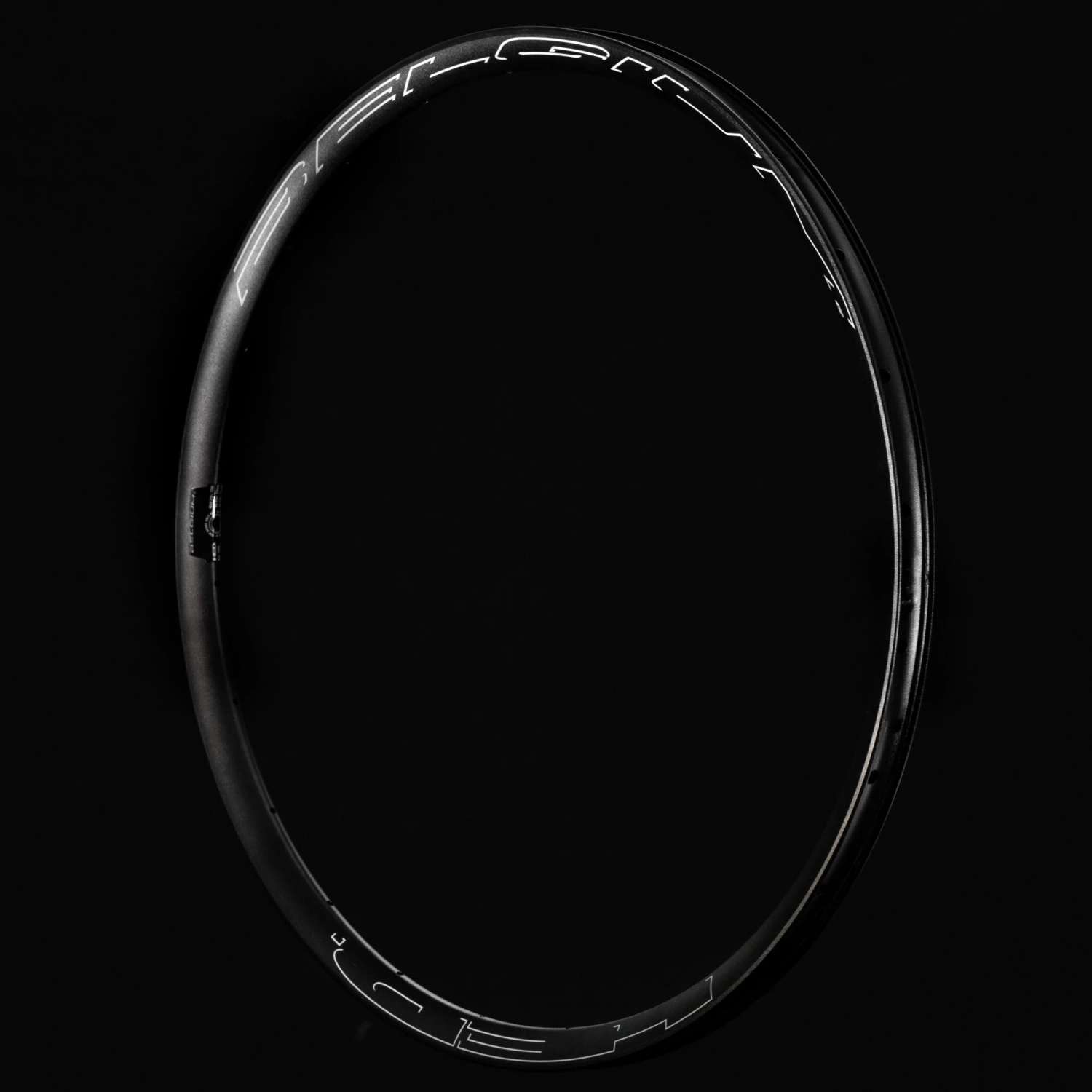

HED Belgium R Disc Brake Rim

HED Belgium R alloy rims make any custom wheel build that much sweeter.  With a 25mm Plus rim, you can add tire volume, smoothness, and rolling speed to any bike or hub set.

All Belgium rims feature a welded rim joint and are drilled for a standard presta valve.  Spoke drilling is down the centerline of the rim (not offset).  Please carefully read the specifications below to find out detailed information on the different rims we offer.

Specifications

Belgium Plus Disc clincher
Tire Type: Clincher (tubeless compatible)
Rim Width (External): 25mm
Rim Depth: 24mm
Hole Counts:  28, 32
Color: Black
Brake Track: N/A
Wheel Size: 700c
Weight: 465 grams
Max Pressure: 90psi
ERD: 592mm

Tech Notes:

25mm Plus clincher rim MIN/MAX tire width: 23 – 58mm

*Note: Our wide rims increase clincher tire volume, causing actual inflated sizes to be larger-than-advertised on the tire. Inflated sizes will be 2-4mm wider on Plus rims.

*Note for wheelbuilders: Rim ERD for all 700c Belgium rims (regardless of rim width or braking surface) = 592mm
