Chris-king Chris King HED Belgium R R45D Disc Wheelset

This wheelset is built in house by Chris King. If you are looking for a wheel specification different than those shown below please

request a custom wheel quote here.

The Ride:

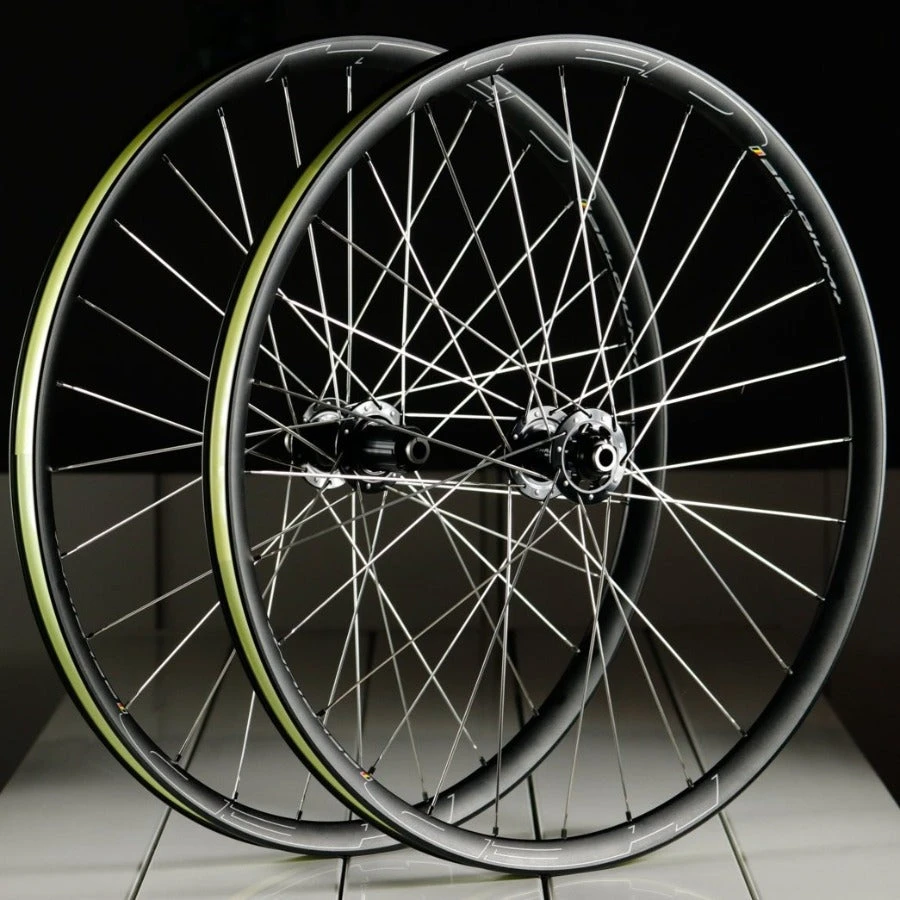

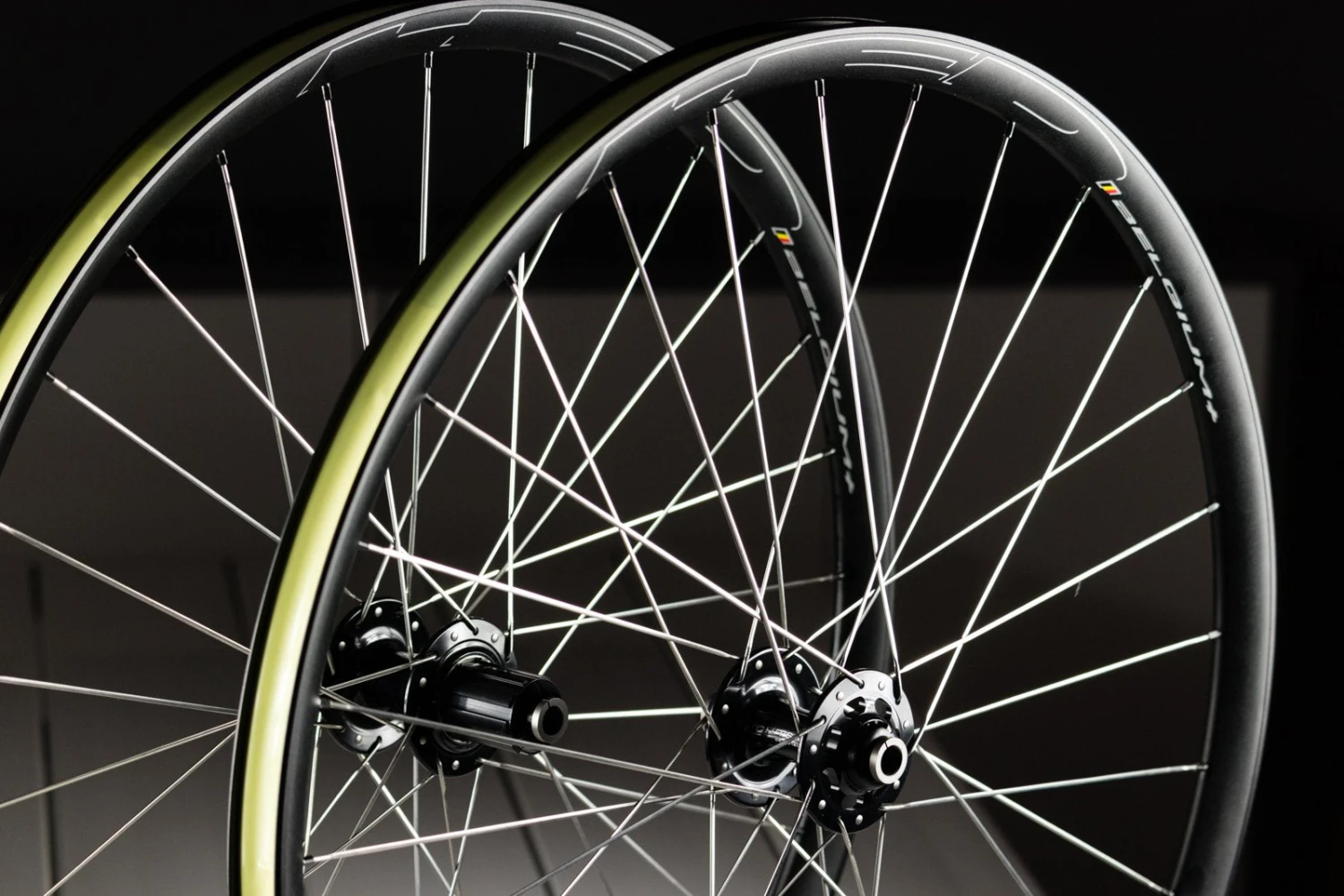

If you have the legs for it, we have the wheelset that can do it all. This is the workhorse road wheelset, we’ll leave it to you to decide what to call a road. The HED Belgium R Disc laced to Chris King R45D hubs with Sapim CX-Ray Spokes, our ultra-smooth bearings and lightweight hubshells is the most versatile, race ready, dependable, aluminum road wheelset available.

The Rim:

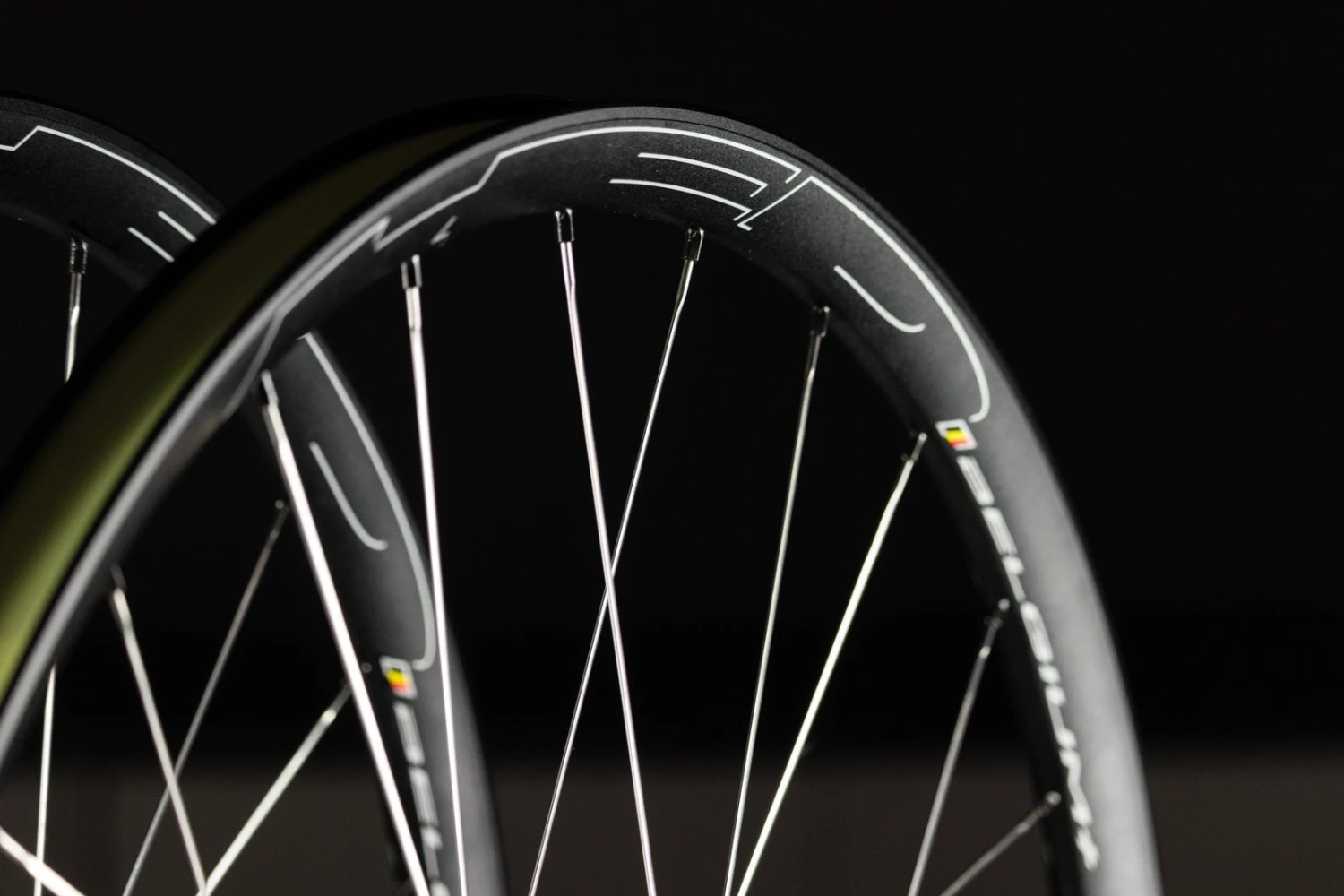

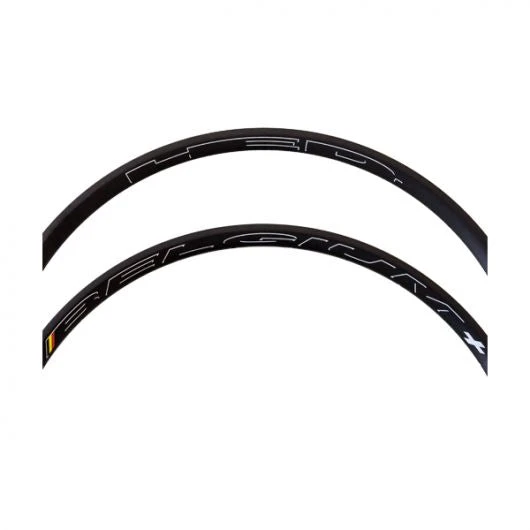

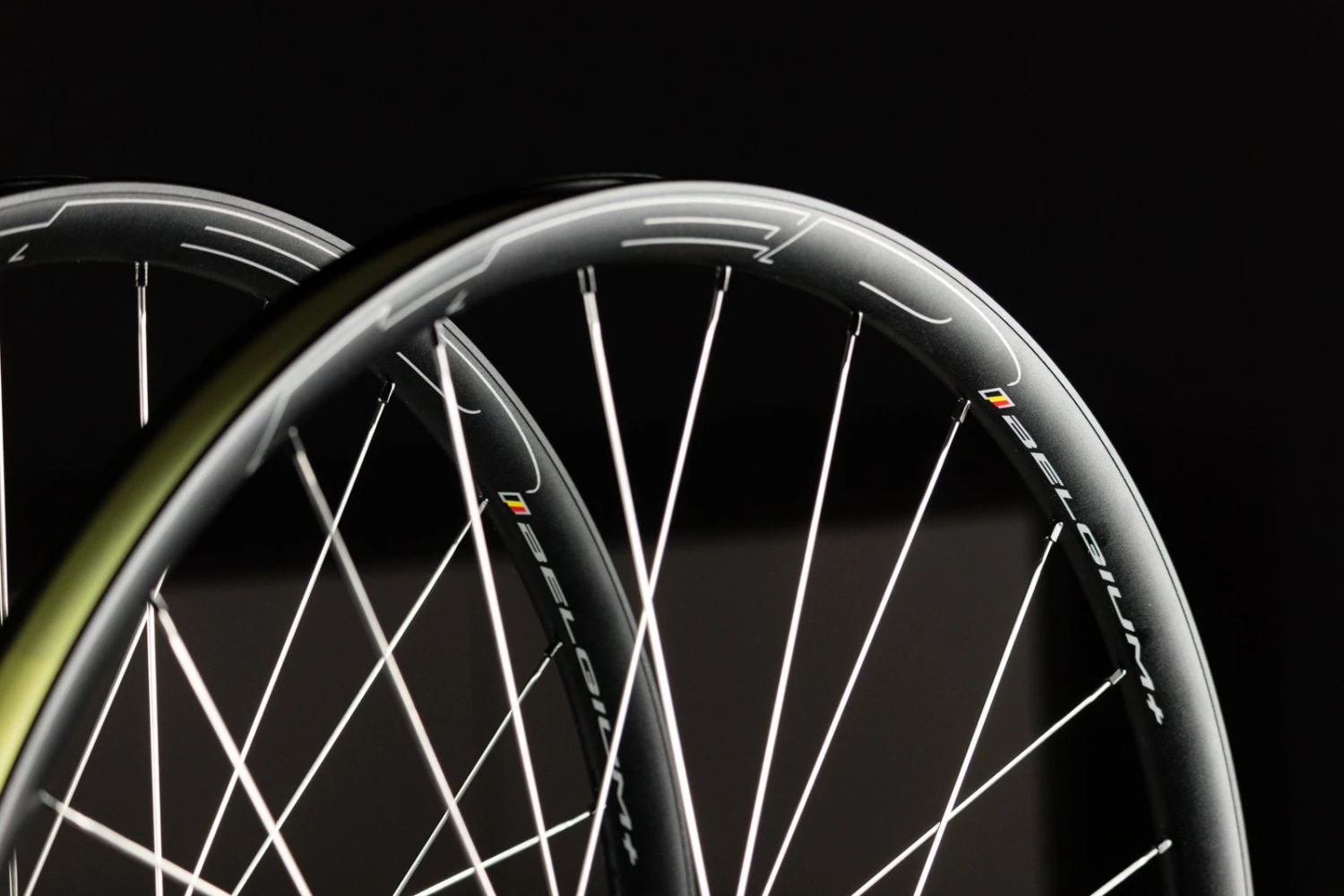

Formerly known as the Belgium Plus, the HED Belgium R  is a versatile rim with a deep cycling heritage. At 25mm wide, the Belgium R Disc will provide a wider tire profile and a rounder contact patch that reduces rolling resistance and creates a more supple ride, and they come tubeless ready to make the ride even smoother. HED goes above and beyond by shot-peening every rim and welding the seam to make them one of the strongest rims available.

The Hubs:

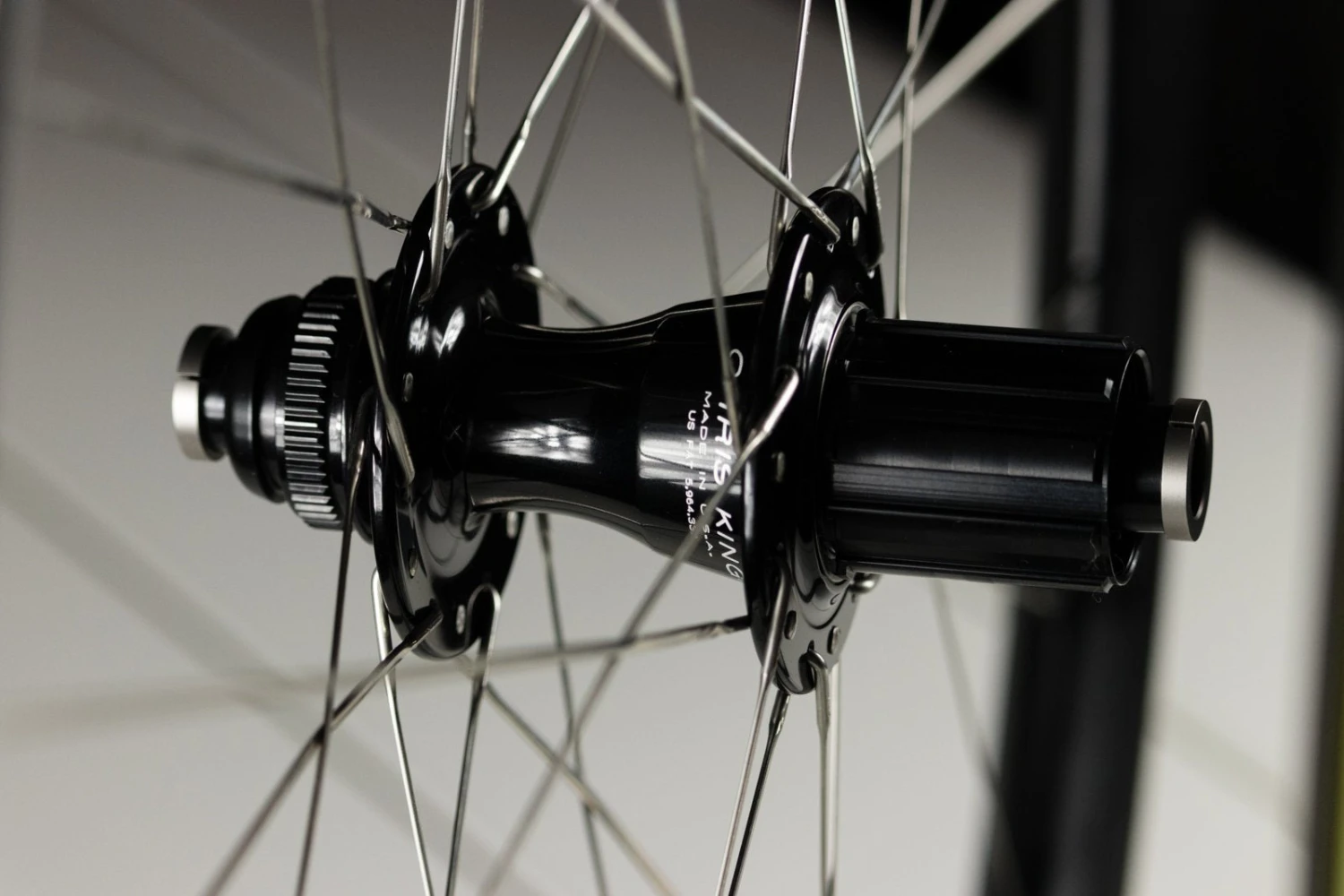

The Chris King R45D, available in Centerlock, is the culmination of over 30 years of bearing experience and more than 20 years of hub building experience. Our R45 rear hub combines a redesigned RingDrive system with 45 teeth for lower drag and near instant engagement, a lightweight hub body, and our legendary made-in-house bearings.

Our bearings, available in steel and ceramic, surgical grade steel races that are machined simultaneously to ensure perfectly matched inner and outer races. The quality and speed of our bearings are what sets us apart from the competition and they are what you will feel and notice on every single ride. As Chris King bearing tracks burnish they get faster with age and all our hubs and bearings are fully serviceable for years upon years of demanding use.

• Built in-house with legendary Chris King precision
• Chris King R45D 28 hole front hub
• Chris King R45D 28 hole rear hub
• Centerlock Lock ring sold separately and required for installation
• HED Belgium R Disc alloy clincher rims are tubeless-specific disc rims made for additional volume and long-range comfort
• Tubeless rim tape installed is included with this wheelset
• King Lifetime Warranty on our hubs
• Chris King-backed 2-year crash replacement policy
• HED-backed 1-year warranty on rims

Wheel Specifications.

• Rim: HED Belgium R Disc
• Wheel Size: 700c
• Rim Type: Tubeless Compatible Clincher
• External Width (mm): 25
• Internal Width (mm): 20
• Rim Depth (mm): 24
• Hub Configuration: 28/28 R45D Centerlock
• HUB Options: Shimano HG, XDR
• Spokes: Sapim CX Ray
• Nipples: Alloy Black, Alloy Silver or Brass Silver
• Lacing Pattern: 2-Cross
• Rim Weight (g): 465
• Front Wheel Weight (g): 780
• Rear Wheel Weight (g): 885
• Total Wheel Weight (g): 1665
