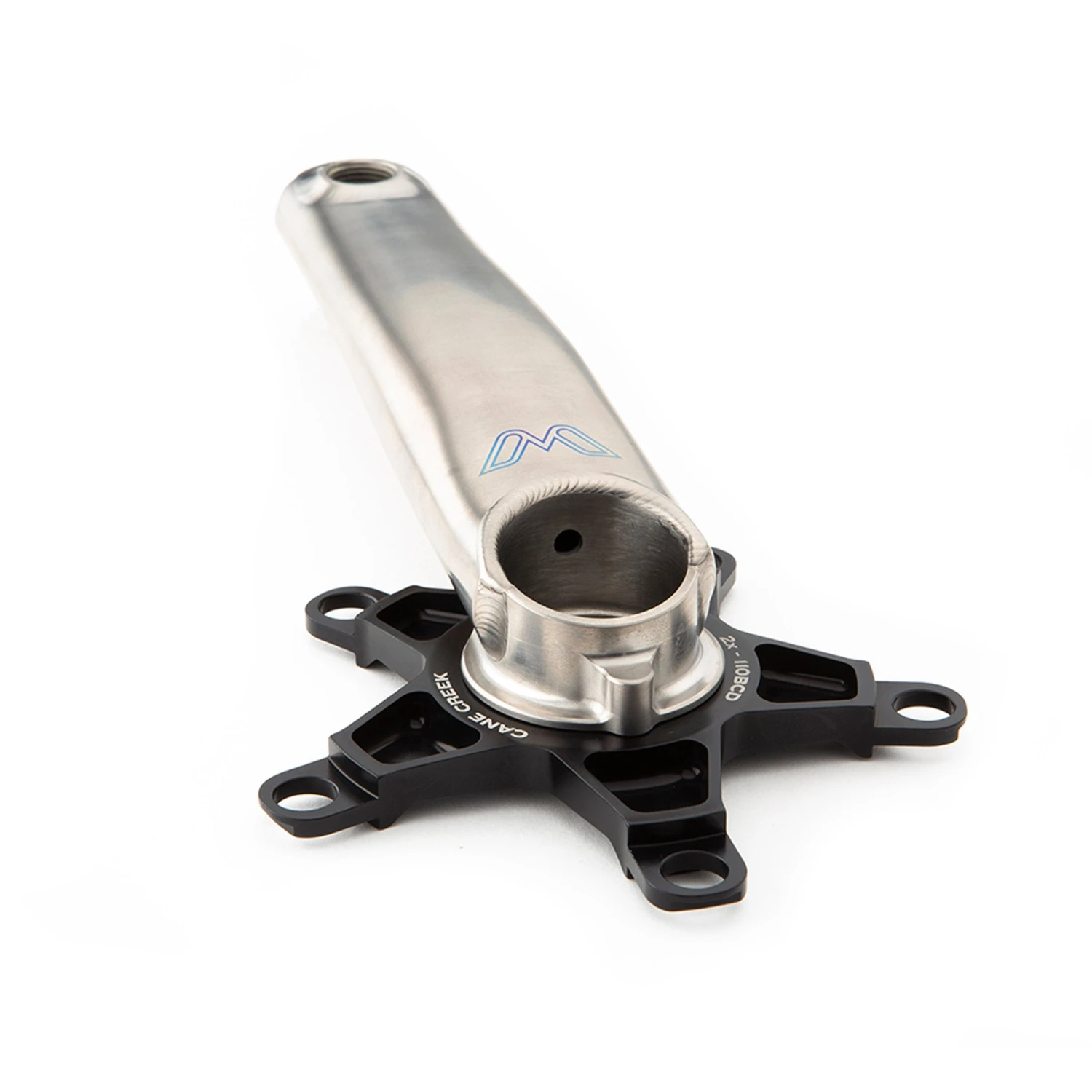

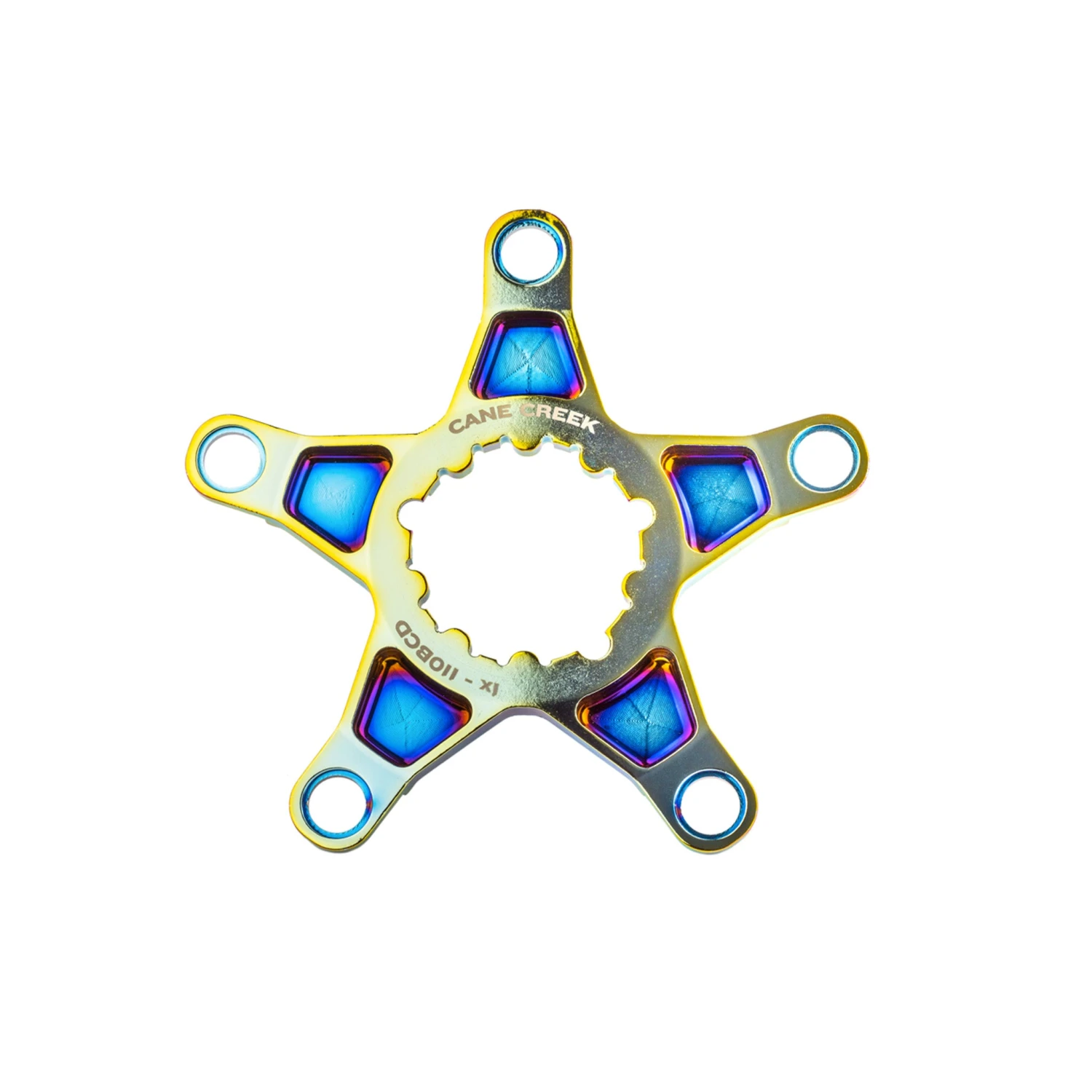

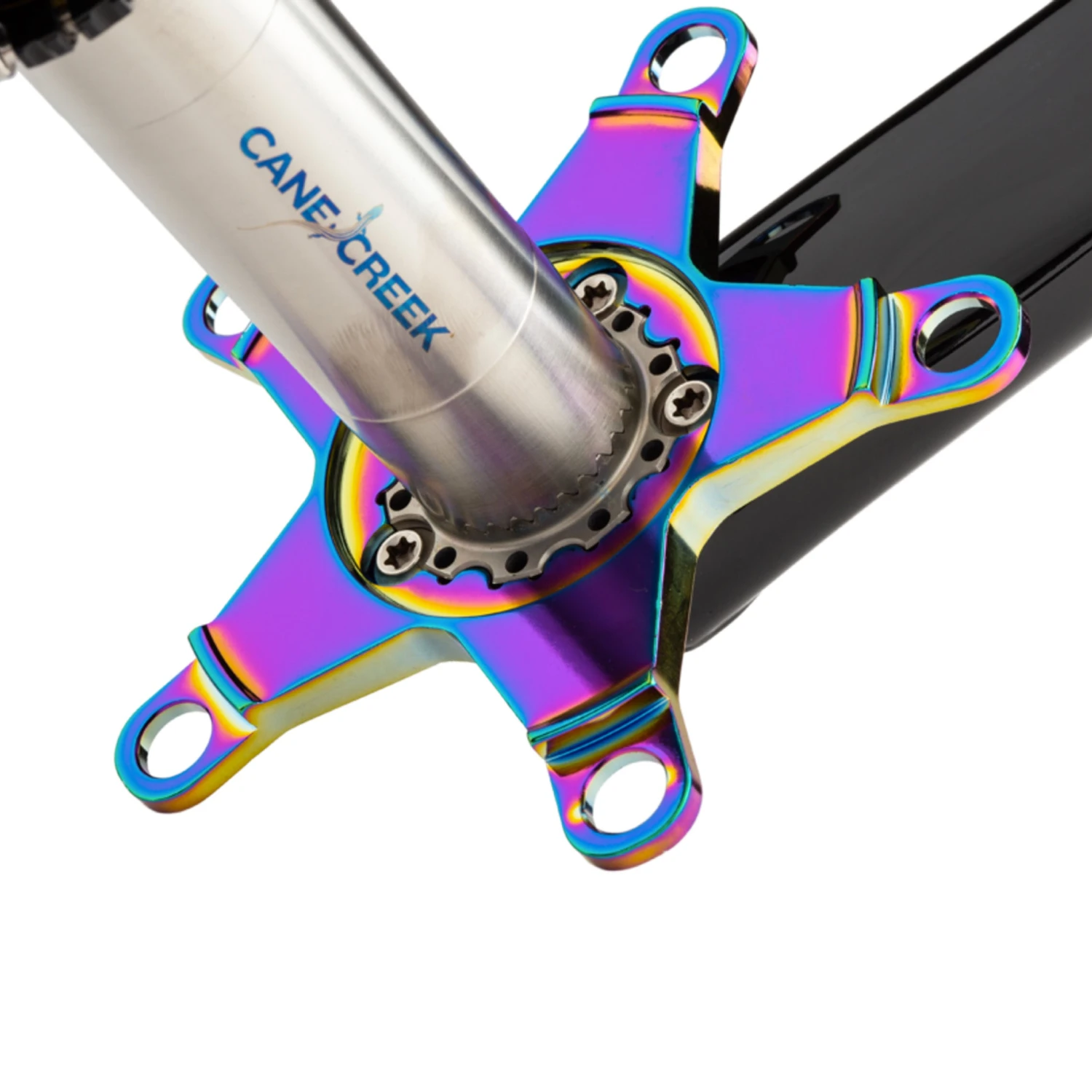

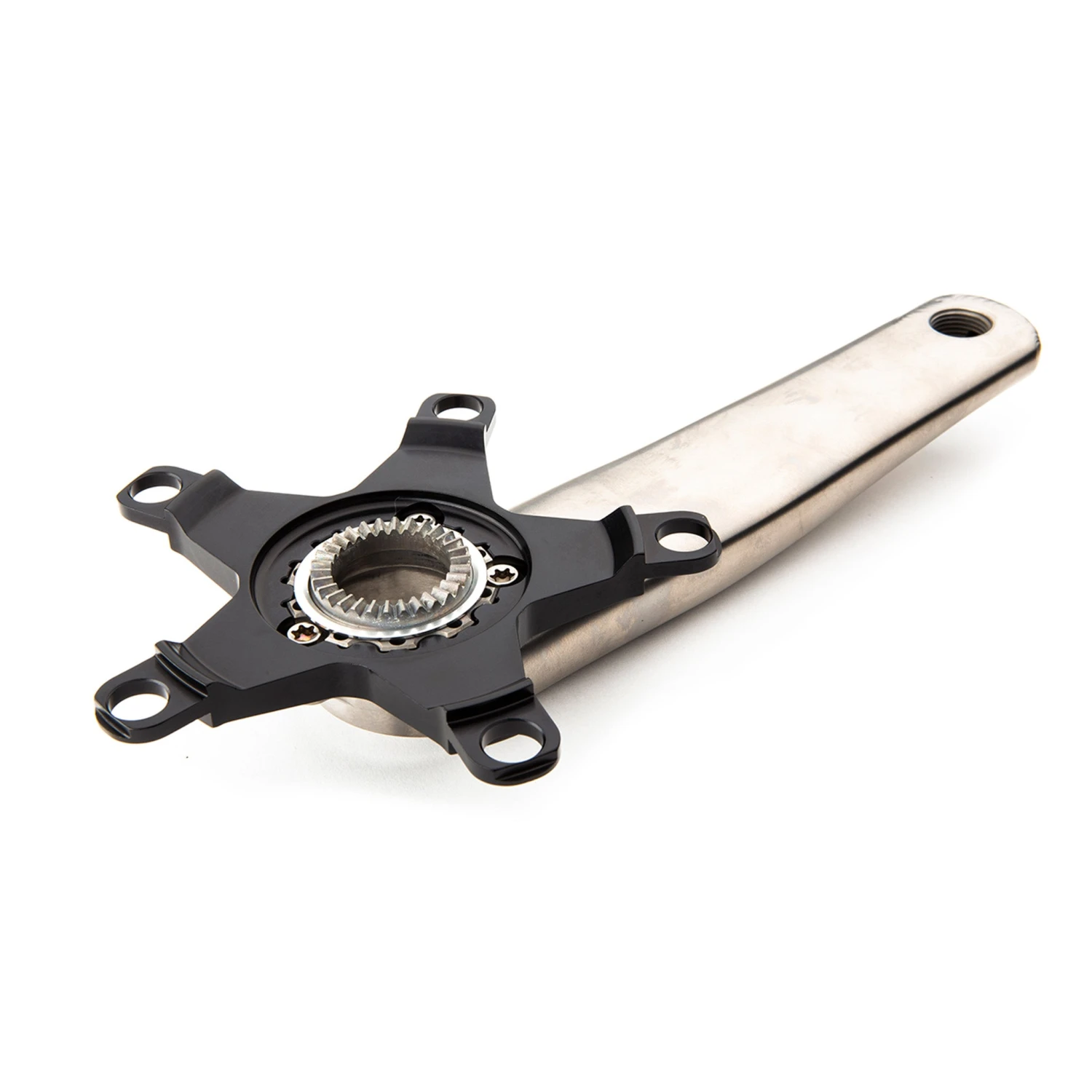

Cane Creek EeWings Crankset Spider

The spiders are optimized to fit

Cane Creek EE Wings cranks

, adding more options for riders on our critically acclaimed titanium cranks. The spiders will allow direct-mount cranks, such as the eeWings, to accommodate 110 BCD chainrings in both 1x and 2x configurations.

2x drivetrain configurations allow for more gear options during a ride while 110 BCD 1x chainrings are typically available in larger sizes than their direct-mount counterparts – both of which are highly desirable to gravel, all-road and traditional road riders.

With the growing popularity of 48/32 subcompact gearing, we are now offering a 2x crank spider that is compatible with the smaller 32t chainring. The new version of the spider allows for no chain clearance issues on the smaller chain ring when bolted to the spider.

• Weight: 50g
• Materials: CNC High Grade 7075 Series Aluminum
• Bolt Pattern: 110MM Bolt Circle Diameter (BCD – 5 hole)
• Crank Interface: SRAM Direct Mount
• Chainline: Optimized for Shimano and SRAM
• Finish: Anodized Black, Anodized Titanium-Grey, Oil Slick
• Offset: 7.5mm – 1X and 2X
