ASTRAL Veil 4 Rim

 Light, fast and strong – in no particular order

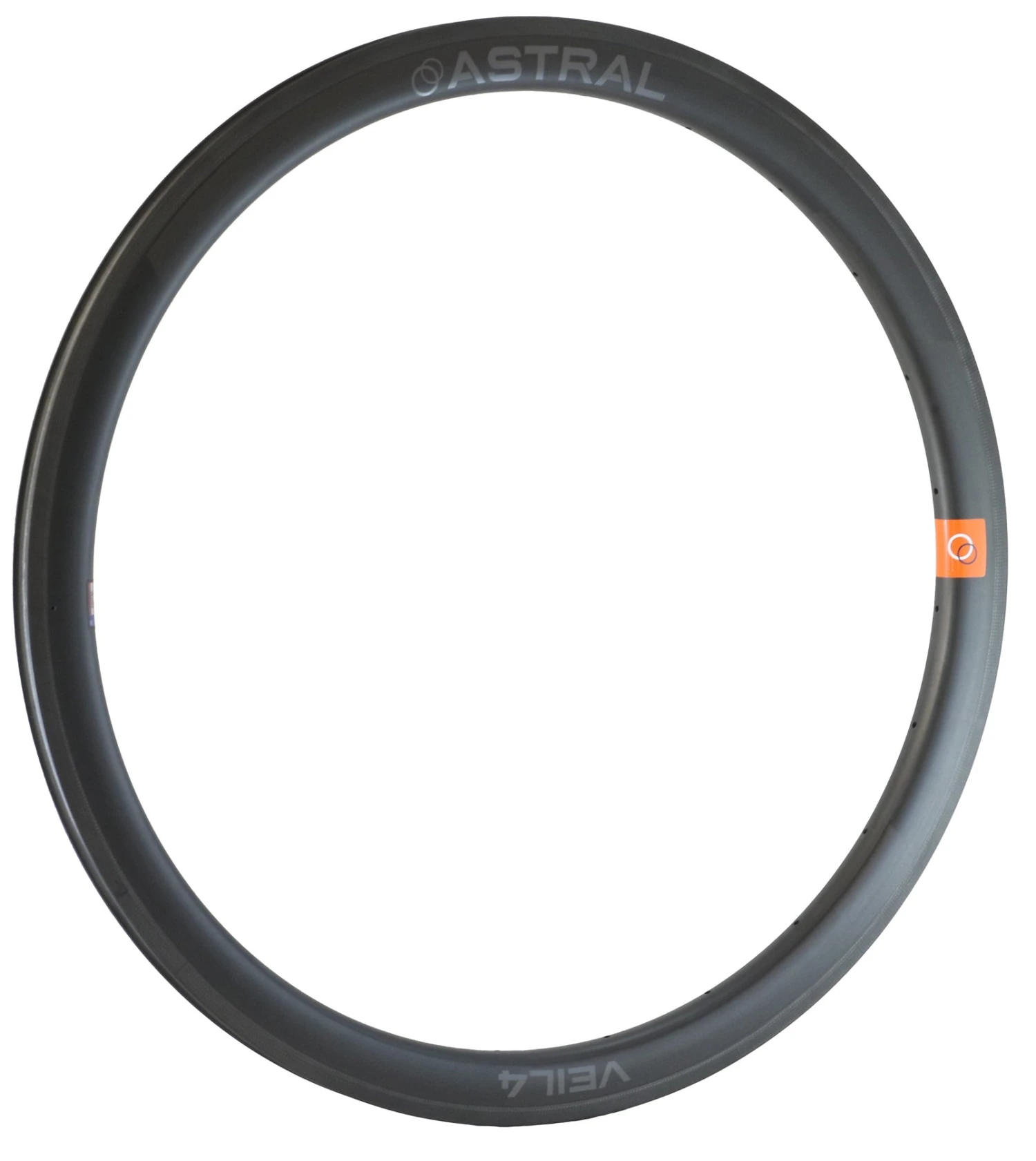

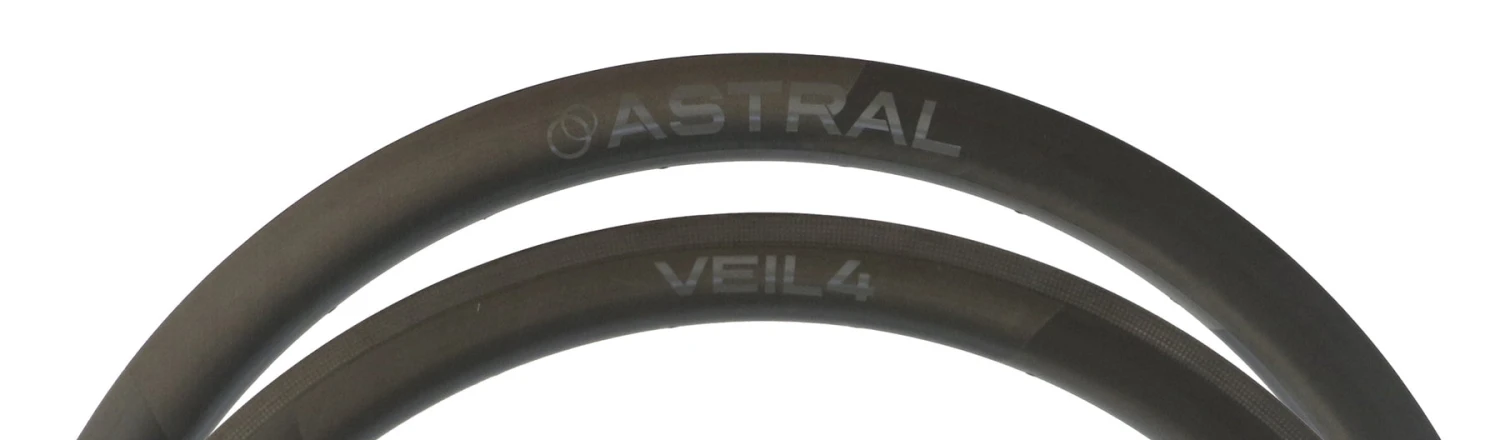

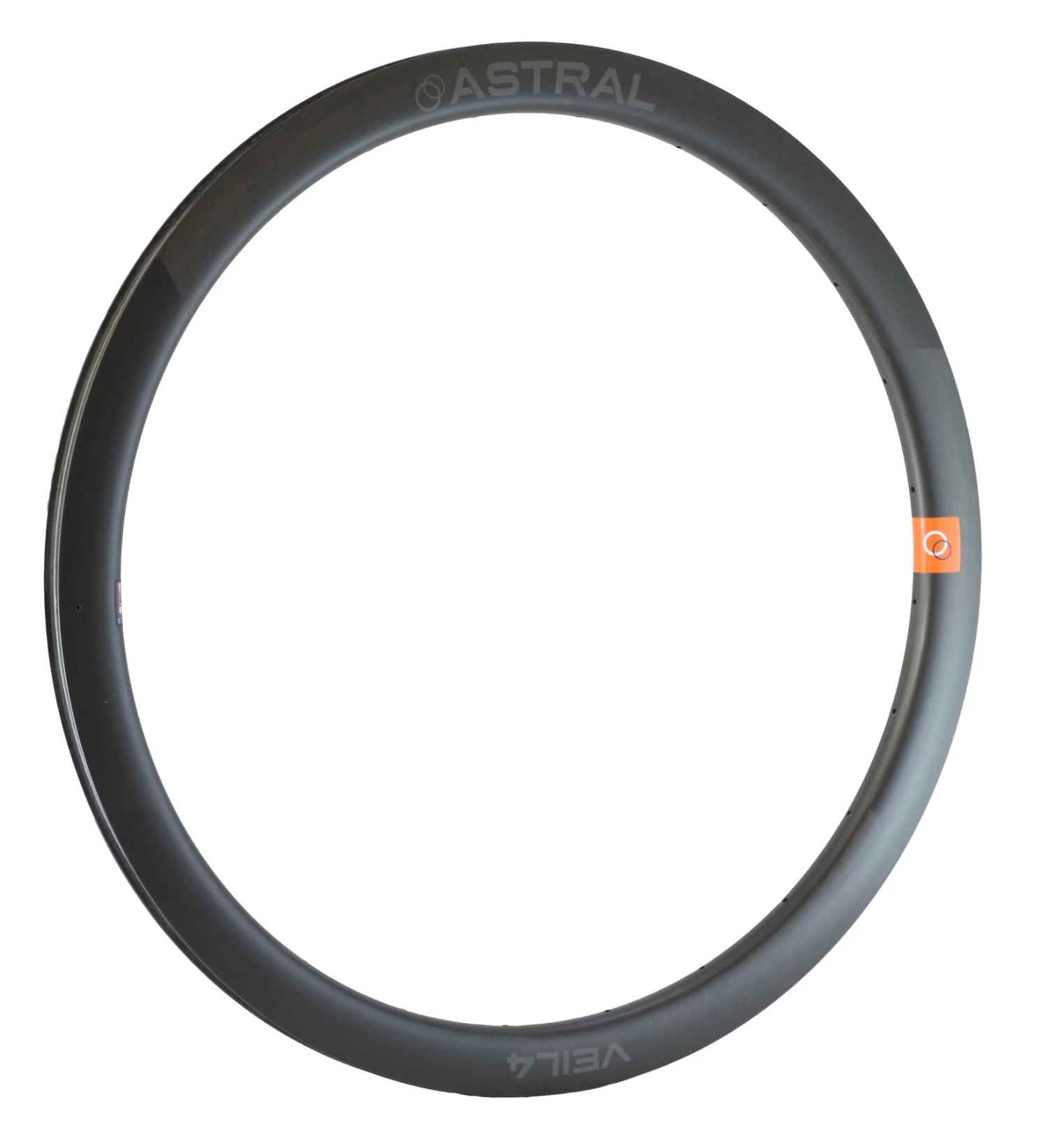

The Veil4 is a 42mm deep carbon rim that strikes a low weight while maintaining an aero advantage. It’s our favorite all-rounder, ready for any terrain. This full-carbon tubeless, ready clincher has an internal rim width of 20mm, making it well-suited for a variety or tire-widths.

Available in rim or disc brake and drilled for external nipples.

All Astral rims are Tubeless Easy for pain-free tire installation that you can set up with a pump.

Custom builds available! Any hub, any spec, just contact us with your special project. We’ll make it happen.

*20 hole rim not available in disc brake.

• 700c Carbon Clincher
• Weight: Rim brake – 455g
• Weight: Disc brake – 445g

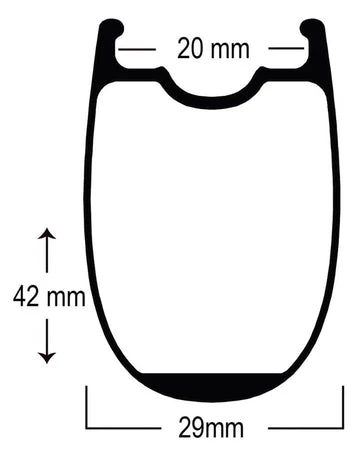

• Depth: 42mm
• Width: Int: 20mm / Ext: 28.5mm
• External nipples
• ERD: 557.5mm
• Spoke Bed Diameter: 555mm
• Max Tension: 130kgf
• Hole count options: Disc brake: 24; Rim brake: 20 or 24
• Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi, 40mm: 60psi, 50mm: 45psi
