Astral Veil 3/4/6 Carbon Road Wheelset (Disc / Rim Brake)

Astral’s Veil series of carbon rims offers something for everyone, disc or non disc and 3 different rim depths. Pair these as part of a custom wheelbuild with any hubs offered on our site from Chris King, White Industries, Industry Nine.

Prices listed here are for a custom wheelbuild using Sapim CX Ray spokes. If you don’t see the exact hub & spoke combo here that you are looking for j

ust contact us for a quote.

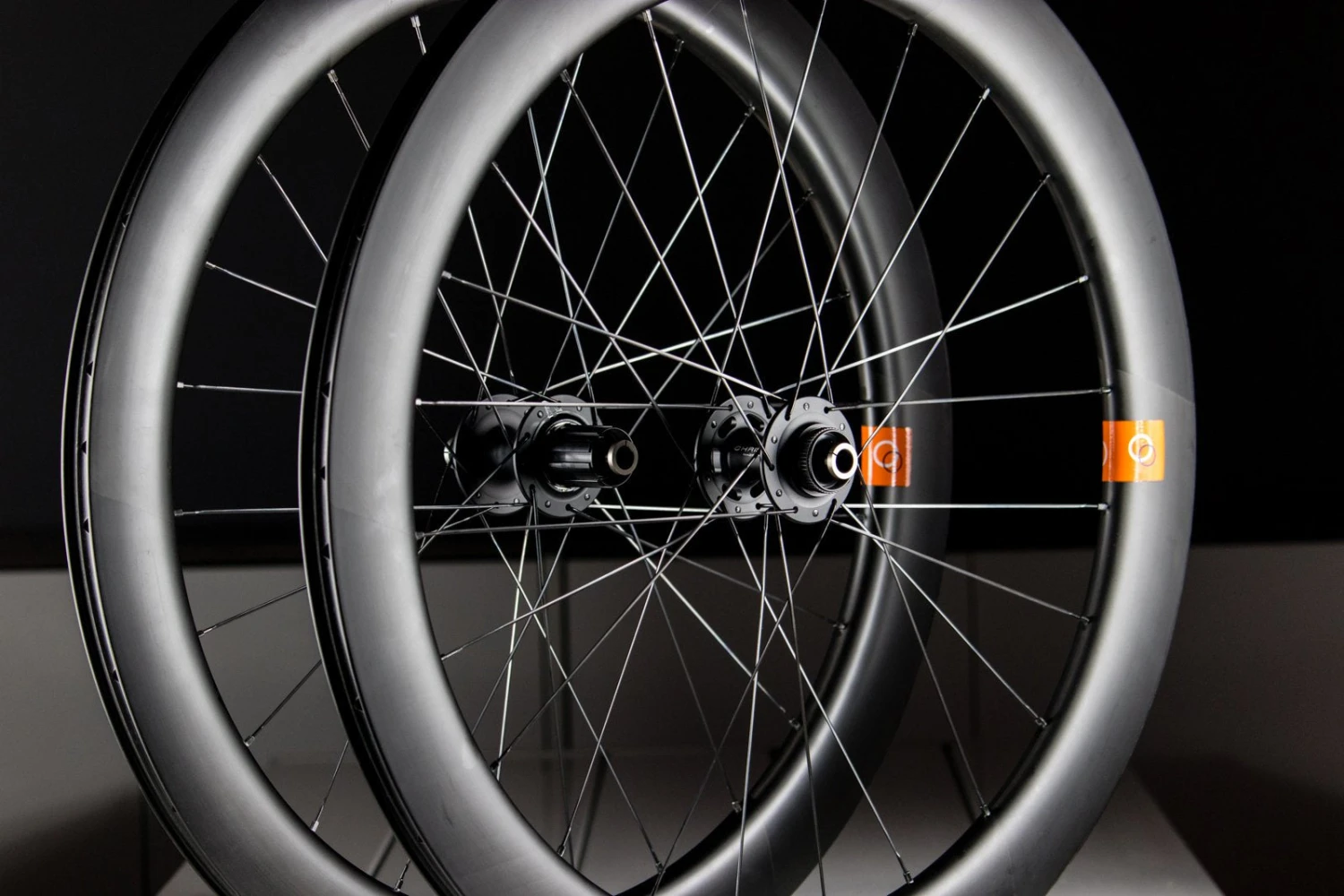

Check out one of our custom wheelbuilds using the Veil 6.

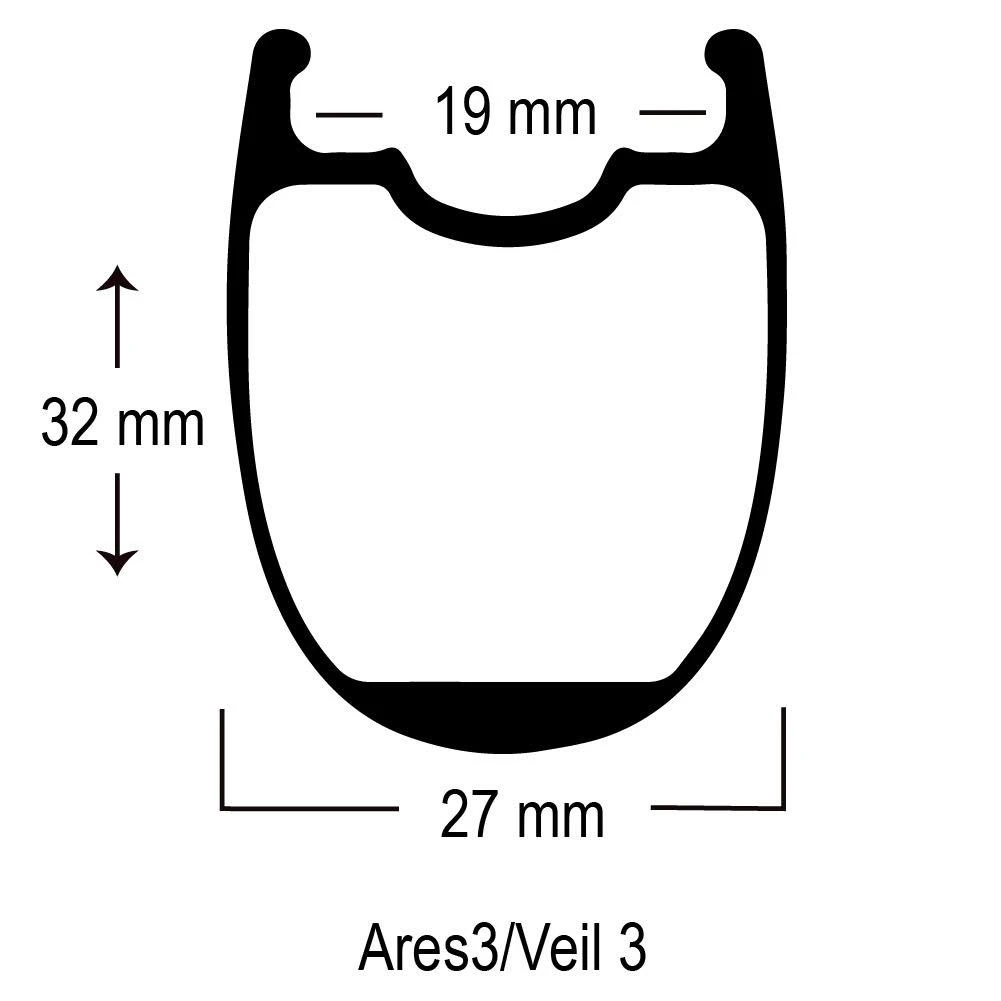

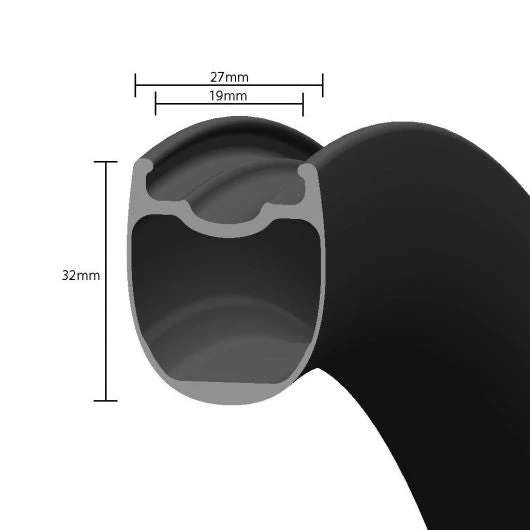

Veil 3. The feather-weight that packs a punch

The Veil3 is a lightweight but durable carbon rim. The 30mm deep Delta Rim profile makes for snappy accelerations and easy climbing while also improving airflow and stability. This full-carbon tubeless, ready clincher has an internal rim width of 20mm, making it well-suited for a variety or tire-widths.

• 700c Carbon Clincher
• Weight: Rim brake – 410g
• Weight: Disc brake – 400g
• Depth: 32mm
• Width: Int – 19mm / Ext – 27mm
• External nipples
• ERD: 576.5mm
• Max Tension: 130kgf
• Hole count options: Disc brake: 24  Rim brake: 20, 24
• Tire size recommendation: 25mm to 54mm (2.1″)
• Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi, 40mm: 60psi, 50mm: 45psi

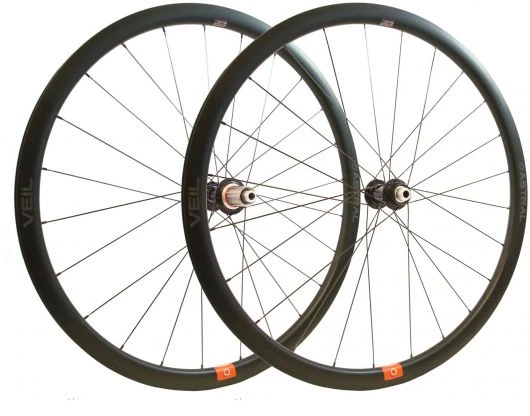

Veil 4. Light, fast and strong – in no particular order

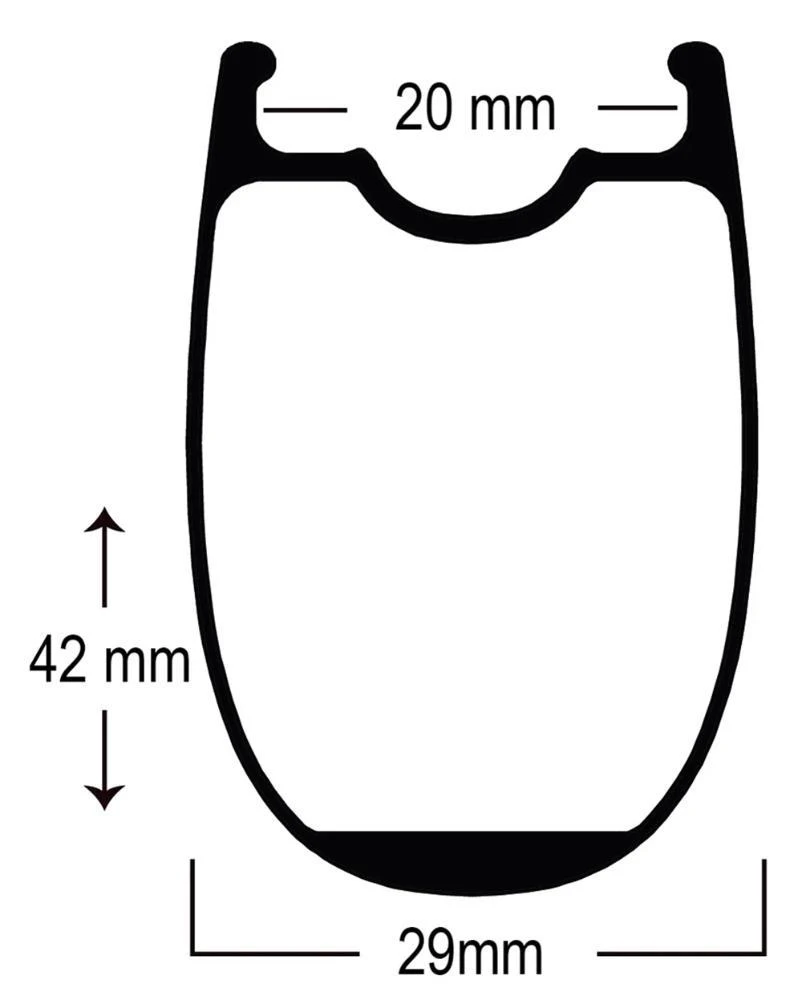

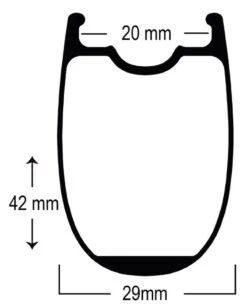

The Veil4 is a 42mm deep carbon rim that strikes a low weight while maintaining an aero advantage. It’s our favorite all-rounder, ready for any terrain. This full-carbon tubeless, ready clincher has an internal rim width of 20mm, making it well-suited for a variety or tire-widths.

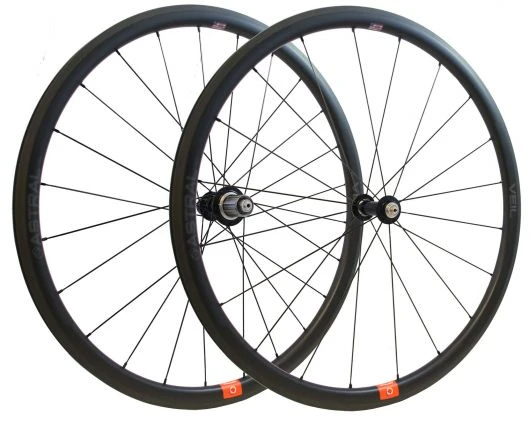

Available in rim or disc brake and drilled for external nipples.

• 700c Carbon Clincher
• Weight: Rim brake – 455g
• Weight: Disc brake – 445g
• Depth: 42mm
• Width: Int – 19.5mm / Ext – 28.5mm
• External nipples
• ERD: 557.5mm
• Max Tension: 130kgf
• Hole count options: Disc brake: 24; Rim brake: 20 or 24
• Tire size recommendation: 25mm to 54mm (2.1″)
• Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi, 40mm: 60psi, 50mm: 45psi

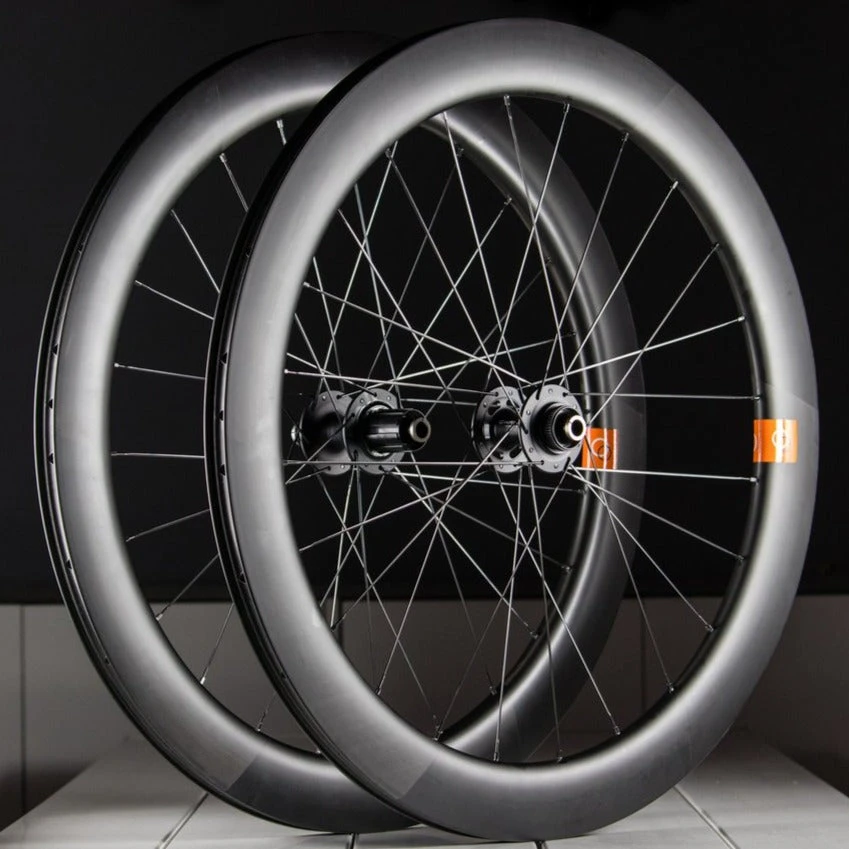

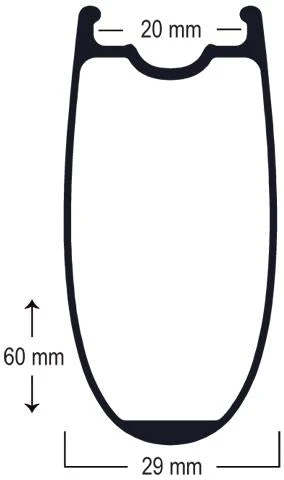

Veil 6. All-conditions speed machine

The Veil6 is our fastest rim. The 60mm full carbon clincher offers the aerodynamics of a deep section rim without sacrificing handling at high speeds or in gusty winds.

This confidence-inspiring balance of speed and agility will find a home in various applications – from criterium racing to endurance road or triathlon.

It is drilled for external nipples and available in rim or disc brake. All Astral rims are Tubeless Easy for simple tire installation.

• 700c Carbon Clincher
• Weight: Rim brake – 515g
• Weight: Disc brake – 510g
• Depth: 60mm
• Width: Int – 19.5mm / Ext – 29mm
• External nipples
• ERD: 523.5mm
• Max Tension: 130kgf
• Hole count options: Disc brake: 24; Rim brake: 20 or 24
• Tire size recommendation: 25mm to 54mm (2.1″)
• Max tire pressure for tire widths: 25mm: 120psi, 32mm: 80psi, 40mm: 60psi, 50mm: 45psi
